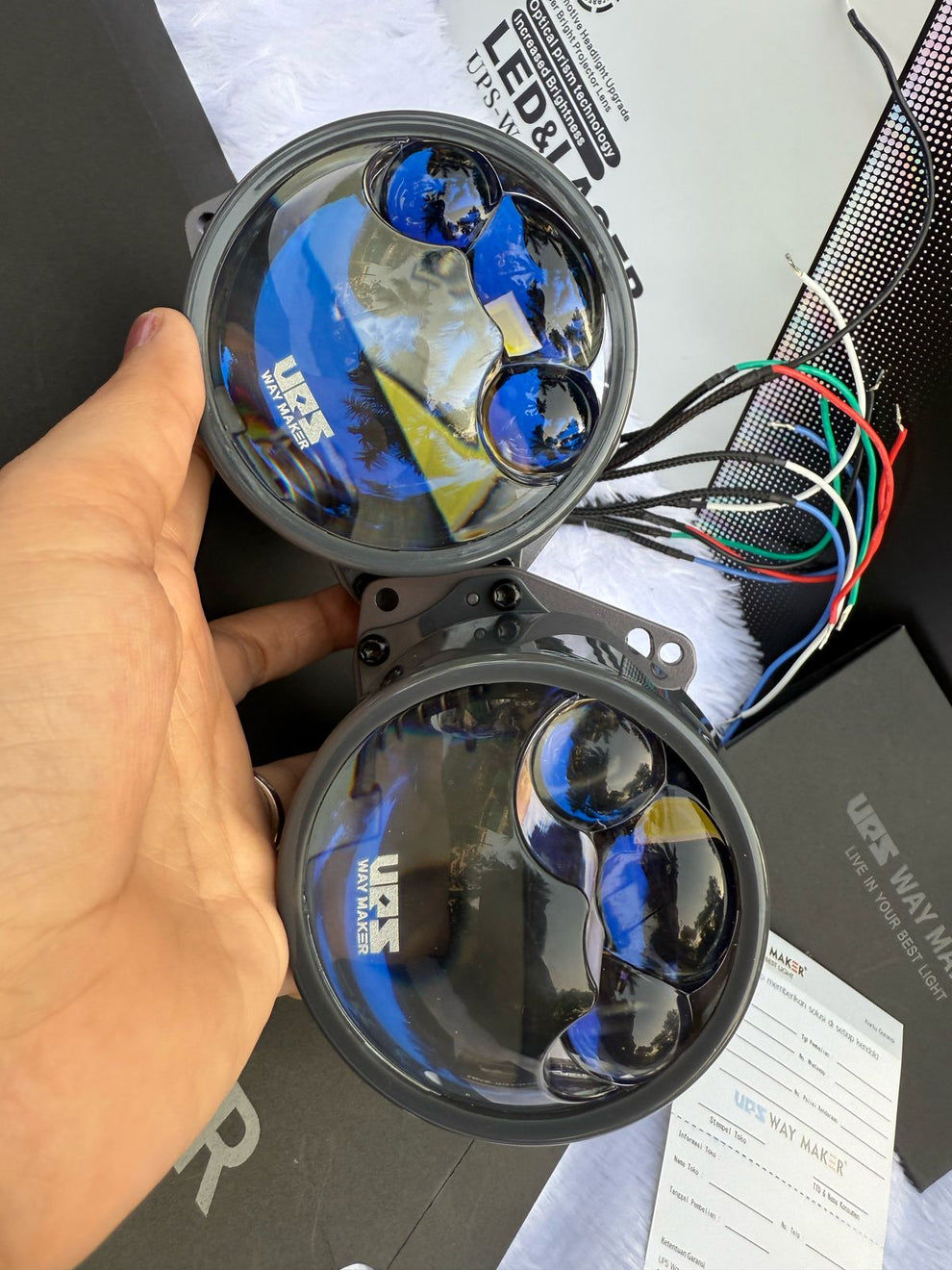

UPS Waymaker Headlight Projectors
UPS Waymaker 3.0-Inch Bi-LED & Laser Headlight Projector Series
Upgrade your vehicle’s factory halogen or weak HID lamps to premium automotive grade with the UPS Waymaker High-Performance Headlight Projector Series. Known across the retrofit industry for intense lumen output, advanced optical prism engineering, and rock-solid thermal reliability, UPS Waymaker projectors deliver uniform low-beam road spread paired with long-distance high-beam penetration.
Each projector features optical-grade curved glass lenses and heavy-duty internal solenoid shutters, generating a laser-sharp cutoff line that maximizes asphalt illumination while preventing glare for oncoming motorists.
Core Performance Features
Multi-Chip LED & Laser Hybrid Options: Available in dual-reflector Bi-LED and auxiliary multi-laser architectures (such as the LS, RX, and G-series) engineered for focused hot-spot punch down dark highways.
Ultra-Sharp Razor Cutoff Line: Precision-cast optical lenses produce a flat, high-definition cutoff with a signature blue color-flicker boundary to eliminate glare.
Instantaneous Dual-Beam Transition: Quick-response internal electromagnetic shutters toggle between a wide-angle low beam and a full-throw high beam with zero delay.
Daylight-Matched 6000K Spectrum: Emits a crisp, pure white beam that highlights lane boundaries, road signs, and obstacles without causing visual driver fatigue.
Active High-RPM Thermal Management: Built-in ball-bearing cooling fans (9,500–10,000 RPM) paired with cold-forged aluminum heatsinks provide constant heat extraction to protect LED drivers from thermal throttling.
Universal Retrofit Compatibility: Standard 3.0-inch form factor with universal threaded shafts and Hella 3R/G5 mounting footprints allows seamless installation into cars, SUVs, and motorcycles.
Technical Specifications Overview
Parameter | Specification |
Brand / Series | UPS Waymaker Automotive Lighting |
Lens Diameter | 3.0 Inches (Clear HD / Blue AR-Coated Glass) |
Technology | Bi-LED / Dual Reflector / Auxiliary Laser Hybrid |
Operating Voltage | 9V – 16V DC (Standard 12V automotive systems) |
Wattage Range | 55W – 75W (Low Beam) / 65W – 100W+ (High Beam / Laser Assist) |
Color Temperature | 5700K – 6000K Pure White |
Beam Configuration | Low Beam + High Beam (Bi-LED Solenoid Shutter) |
Cooling Architecture | High-Speed Ball Bearing Turbo Fan + Aircraft-Grade Aluminum |
Operating Lifespan | ≥ 30,000 to 50,000 Hours |
Box Contents
2× UPS Waymaker 3.0-Inch Bi-LED Headlight Projectors
Integrated / External Smart Canbus-Ready Driver Modules
Universal Mounting Hardware (Threaded Shafts, Silicone Spacers & Lock Nuts)
