MASSIVE AUDIO BLADE X BPX 8004 (Full Range SQ 4-Channel Amplifier)
Power up your car's complete acoustic setup with the Massive Audio BLADE X BPX 8004 Full Range SQ 4-Channel Car Amplifier. Engineered in the USA by Massive Audio under their high-fidelity Sound Quality (SQ) line, the BPX 8004 delivers 800 Watts of dynamic peak power (200W × 4), offering clean amplification for front components, rear coaxials, or a bridged subwoofer combination.
Designed with an integrated OEM high-level line converter that accepts up to 9V speaker inputs, the Massive Audio BPX 8004 taps directly into factory touchscreen stereos or aftermarket Android head units without requiring external hi-low converters. Its compact, heat-dissipating aluminum chassis fits discreetly beneath front seats or inside boot compartments across popular Indian cars including Thar, Thar Roxx, Scorpio-N, Creta, Brezza, and Fortuner.
Key Features & Performance Highlights
800W Peak / Clean SQ Continuous Output: Delivers 200W × 4 peak output and 60W RMS × 4 @ 4 Ohms (or 2-Ohm stereo stable) with ultra-low distortion (<0.1% THD).
Built-in OEM Line Converter with Auto Turn-On: Features auto-sensing high-level speaker inputs with up to 9V signal acceptance, automatically turning the amplifier on without needing a separate remote trigger wire from the head unit.
Full MOSFET Power Supply & Mil-Spec PCB: Built using high-grade switching MOSFETs and military-grade surface-mount components (SMD) on a noise-canceling circuit board for clean signal reproduction.
Custom Frequency Crossovers & Bass Boost: Equipped with independent High-Pass (HPF), Low-Pass (LPF), and 0dB to 12dB bass boost controls to tune component tweeters and mid-bass drivers with pinpoint precision.
Next-Gen 5-Way Protection Circuitry: Built-in safeguards protect against thermal overload, short circuits, reverse polarity, and clipping voltage.

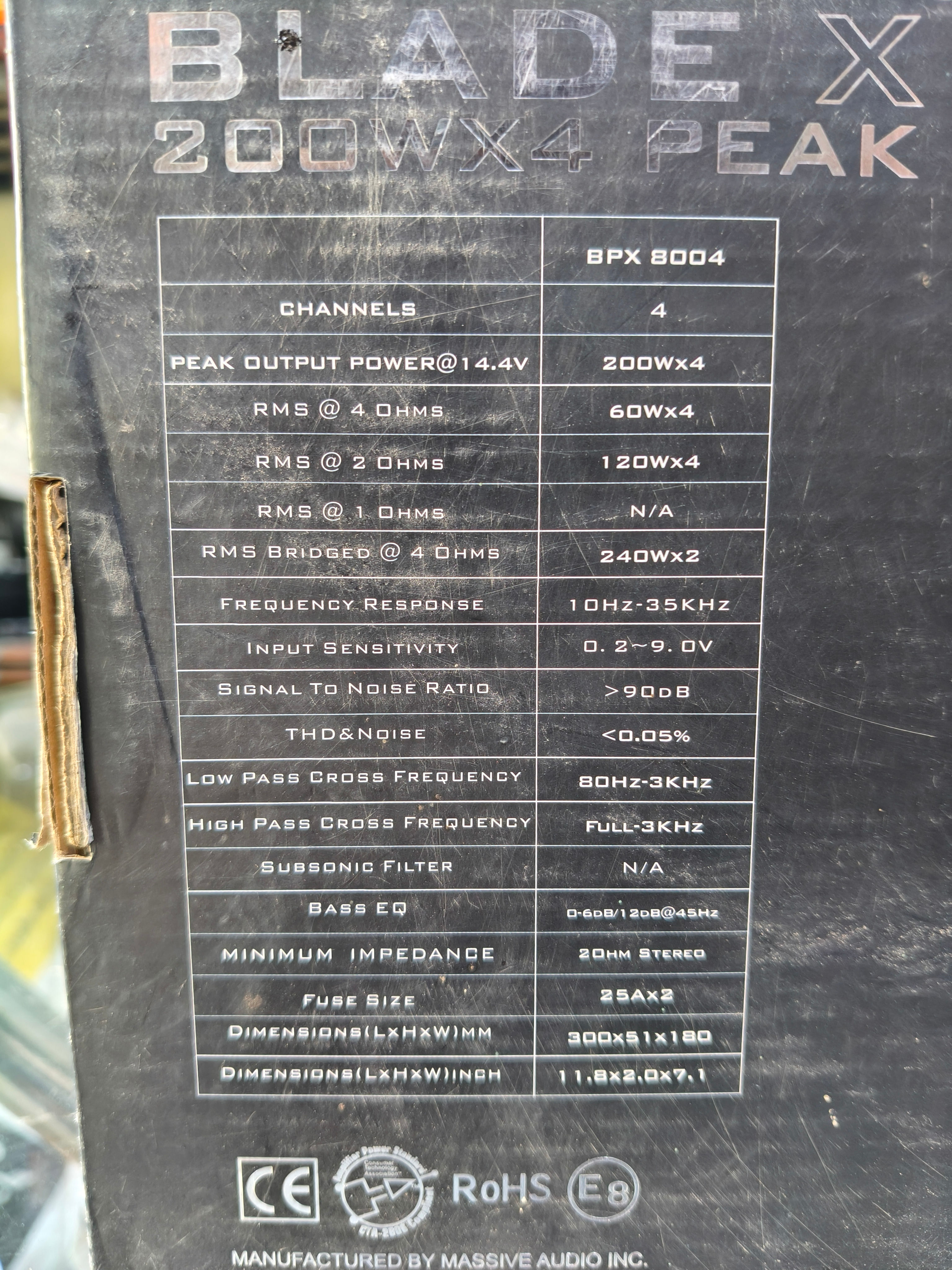

Technical Specifications
Parameter | Specification |
Brand & Series | Massive Audio (USA) – BLADE X Series |
Model | BPX 8004 |
Amplifier Class | Full-Range Class A/B Sound Quality (SQ) |
Channel Count | 4 Channels (Bridgeable to 3 or 2 Channels) |
Peak Power Output (@ 14.4V) | 200 Watts × 4 (800 Watts Total Peak) |
Continuous Power (RMS @ 4Ω) | 60 Watts × 4 |
Minimum Stable Load | 2 Ohm Stereo Stable |
Frequency Response | 10 Hz – 35,000 Hz |
Signal-to-Noise Ratio (S/N) | > 90 dB |
Total Harmonic Distortion (THD) | < 0.1% |
Bass Boost Frequency | 0 dB ~ 12 dB @ 45 Hz |
Inputs | Low-Level RCA & High-Level Speaker Inputs (Up to 9V) |
Package Contents
1 × Massive Audio BLADE X BPX 8004 4-Channel Amplifier
High-Level Input Wiring Harness Pigtails
Mounting Screws & Spare Fuses
User Manual & Warranty Card
